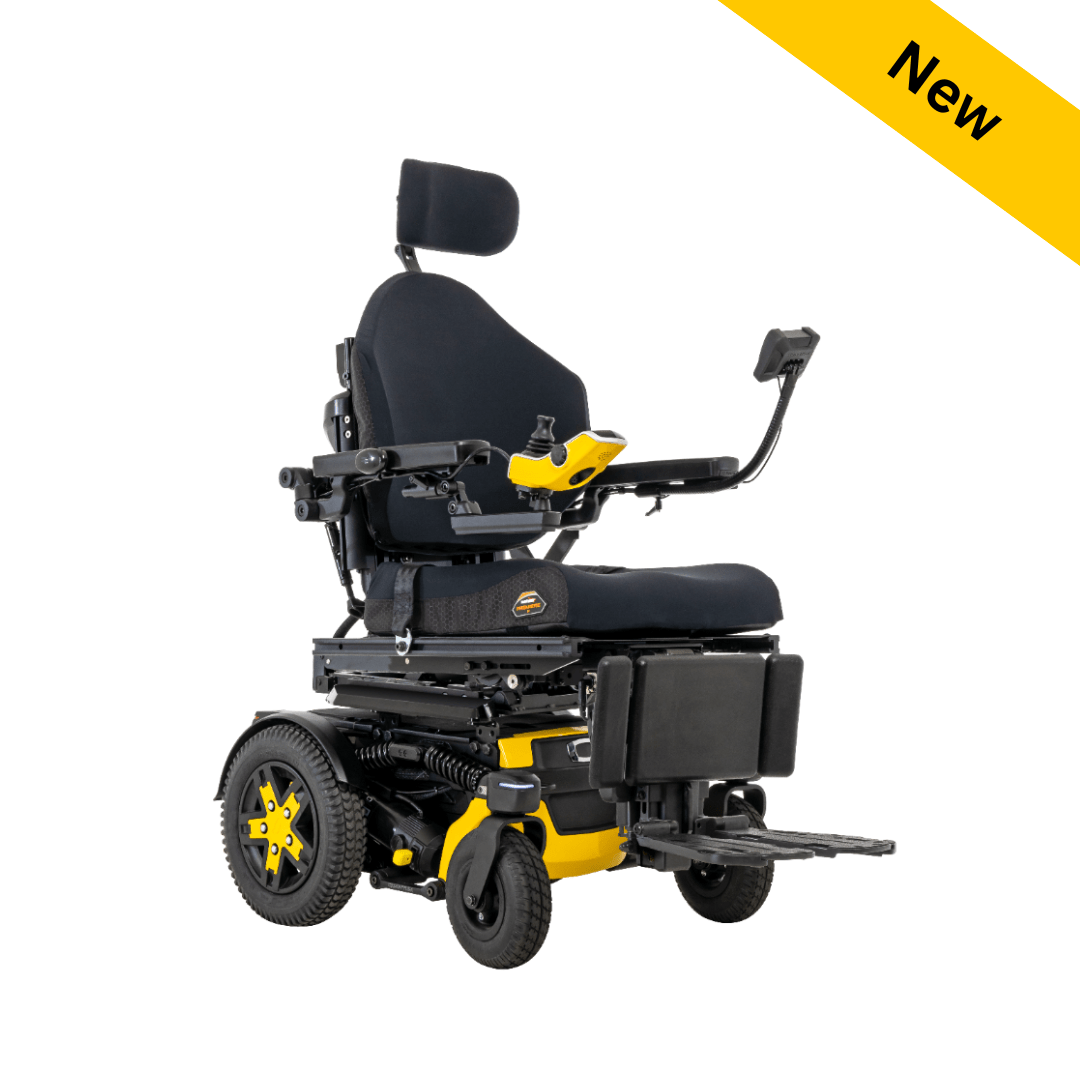

R-Trak
Rear with drive with impressive SRS suspension system
The R-Trak holds the smoothest ride at your fingertips. Designed to sport an impressive SRS suspension system while promising an all over exceptional performance. The R-Trak's new sleek design is further enhanced by the new aesthetic detailing creating an elegant yet powerful design. Providing a high class smooth ride regardless of terrain, the R-Trak stands as the best answer for all users with active lifestyles.
Users of R-Trak are able to utilise unmatched additional benefits, with up to ten inches of powered seat elevation, without compromising a top speed of 3.5mph when in this state. Fifty degrees of tilt and still receive a impressive list of clinical benefits.
The suspension system allows users to achieve greater stability, increased traction on uneven surfaces all while reducing impacts from environmental inconsistencies. Developed with one goal in mind: to give users the utmost comfort, performance and accessibility.
Specifications
| Drive Configuration | Rear-wheel Drive |
|---|---|
| Weight Capacity | 21.6st (136 kg) |
| Turning Radius | 25.7 in. (653 mm) |
| Length | 34.8" (884 mm) |
| Width | 24.2" (615mm) with 14" wheels 26.2 (665mm) with knobby wheels |
| Ground Clearance | 3.97" (101 mm) |
| Max. Obstacle Climbing | 2.36" (60 mm) |
| Max. Slope Rate | 7.5° (13.2%) |
| Base Weight | 58 kg |
| Castor Wheels | 9" solid |
| Drive Wheels | 14" x 3" / 14" x 4" knobby - Solid or Pneumatic |
| Anti- tip Wheels | 4" (102 mm) |
| Battery Size | 2x 70 Ah |
| Speeds | 4 mph (6.44 kmh) / 6 mph (9.65 kmh) / 7 mph (11.26 kmh) |
| Motor Packages | 2-Pole / 4-Pole, Rear-wheel |
| Suspension System | SRS (Smooth Ride Suspension) |
| Electronics | NE+ / Q-Logic 3 |
| Seats | Contour / TB Flex / TB3 |
| Seat Width | 12" - 22" |
| Seat Depth | 12" - 22" |
| Powered Positioning | Tilt / Recline / Lift / Legs |
| Seat Lift | 10" lift @ 3.5 mph |
| Standard Features | USB charger port and front & rear LED fender lights |
| Crash Tested | Yes |
| Colour Range | 14 vibrant colour options |
Overview
Download our
product brochure
Download our product brochure here to get an overview of our current product range!
Features
- Rear wheel drive
- Impressive SRS suspension system
- Available with 4mph, 6mph or 7mph speed packages
- 14 Standard colour options
- Smoother ride experience
- New Sleek aesthetic design
- Tilt
- Recline
- Powered articulating centre mount footboard
- Powered elevating and articulating individual leg supports
