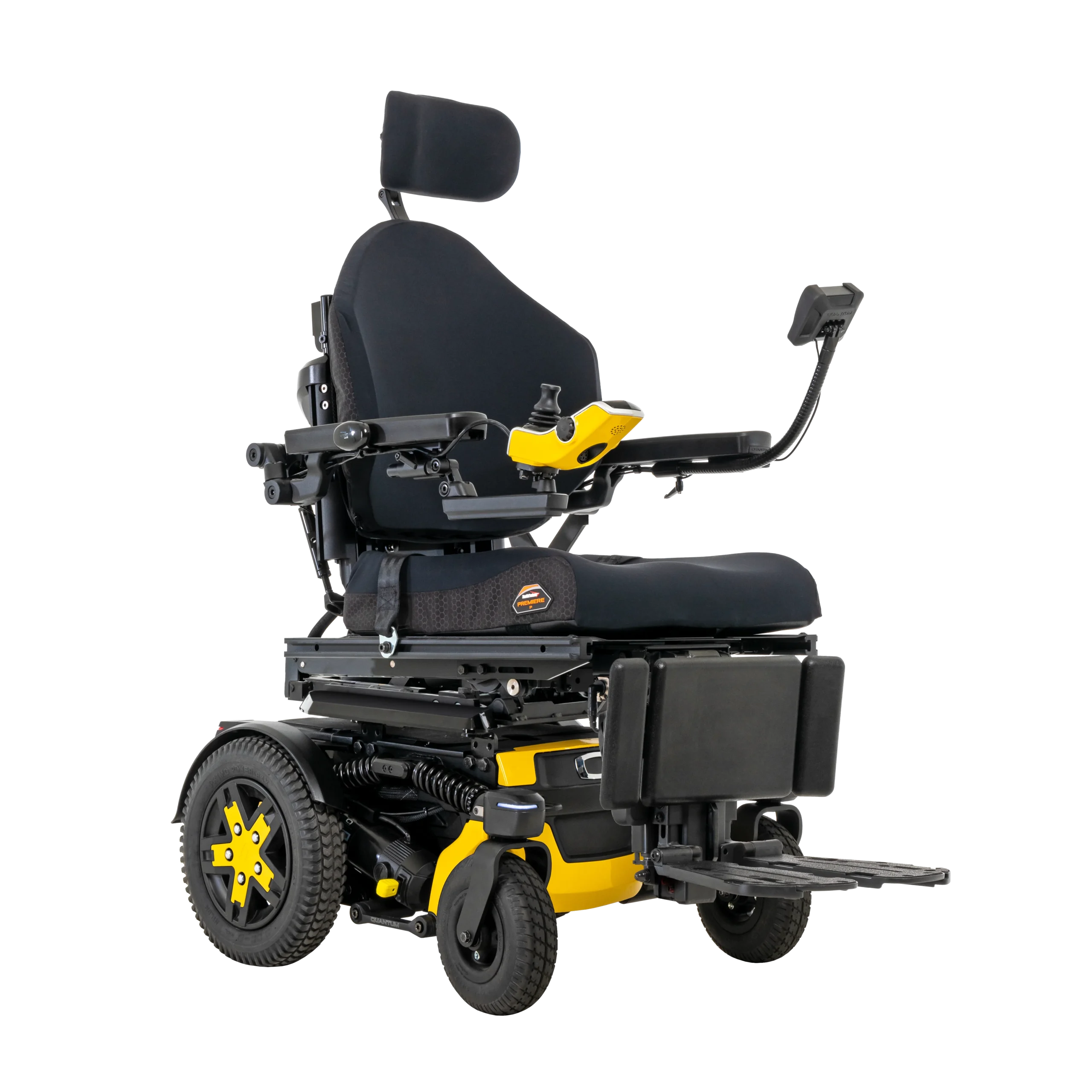

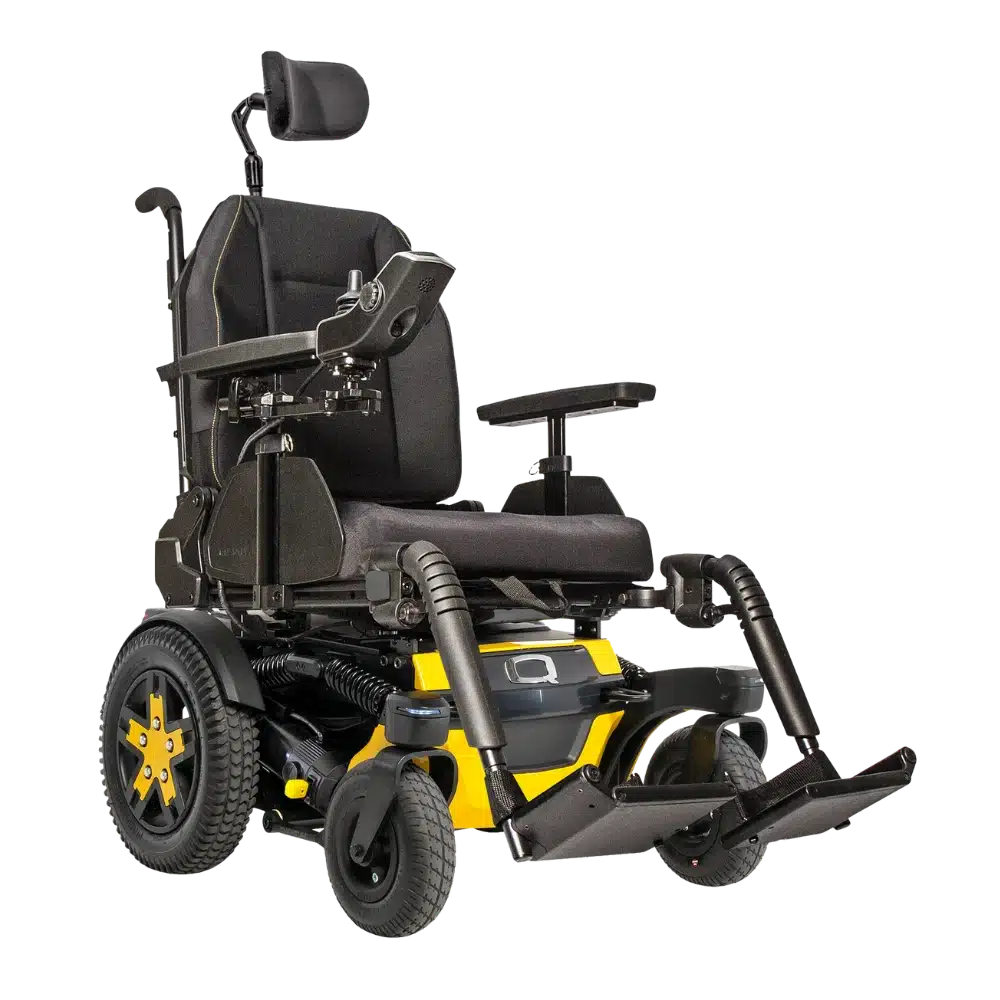

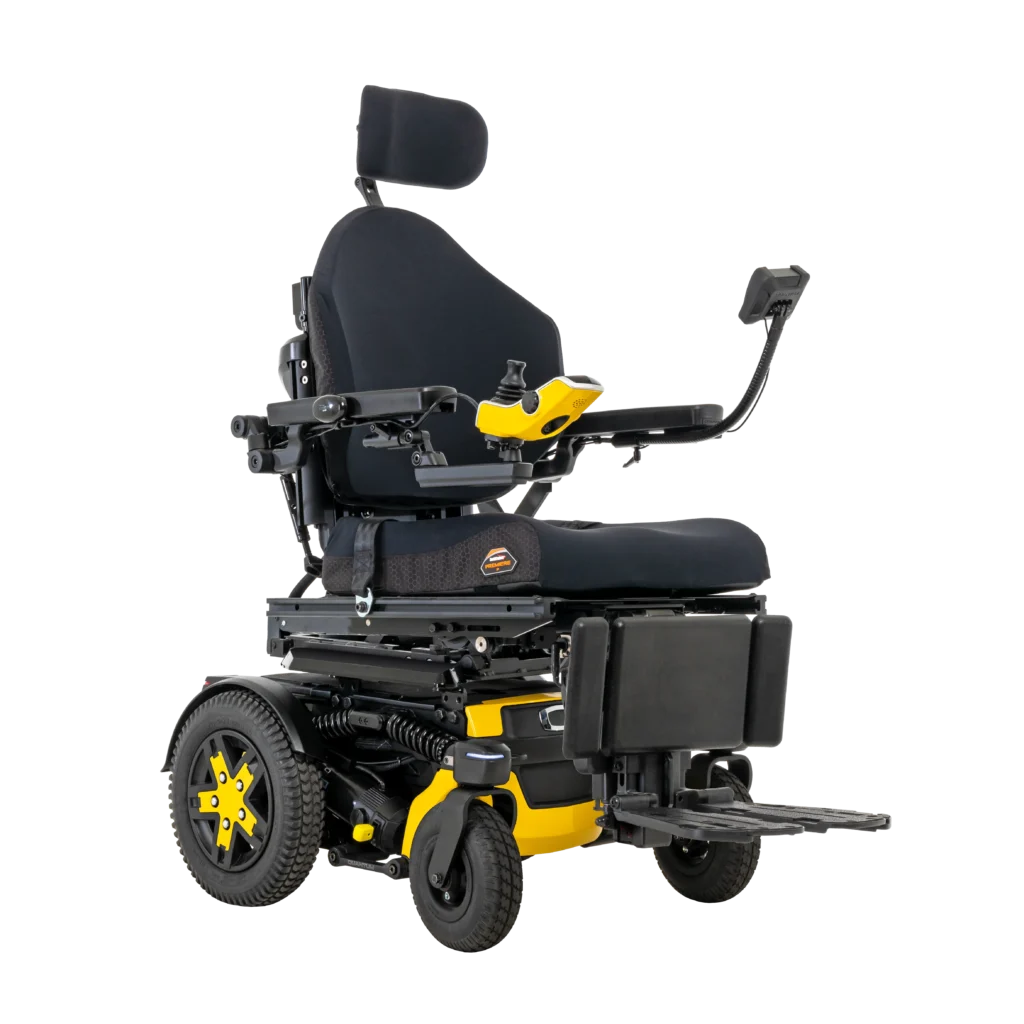

The Quantum R-Trak Power Wheelchair gives you the smoothest and most controlled ride you’ve ever experienced. It combines the stability of a rear-wheel drive with an easy-to-operate ride across all different terrains. Showcasing an impressive Smooth Ride Suspension (SRS) system, this powerchair promises an all-over exceptional performance. Our R-Trak has a well-balanced centre of gravity, excellent stability, increased traction on uneven surfaces and a reduced impact on environmental obstacles. This means that you can have a comfortable and reliable ride every day, no matter the terrain you’re navigating. It’s the perfect option for those with highly active lifestyles because it never holds you back.

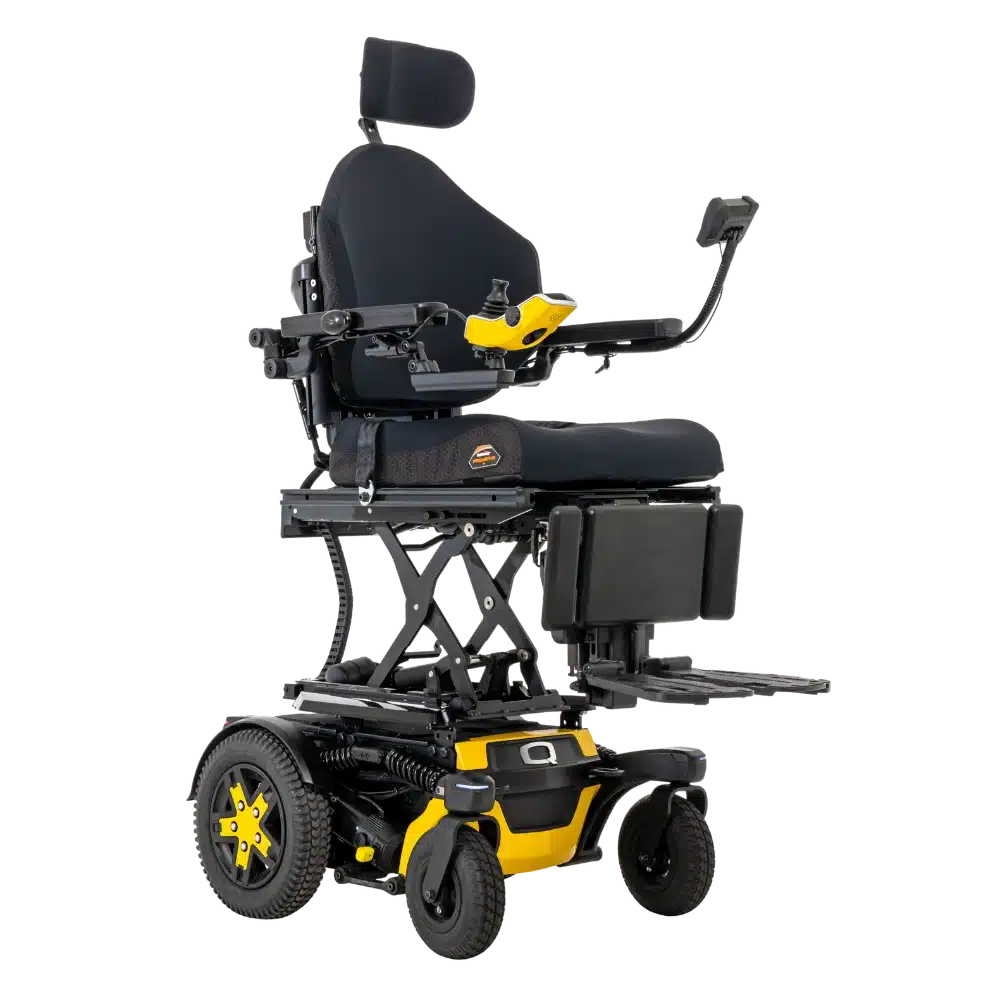

Our Quantum R-Trak Wheelchair also boasts a sleek design that comes with new detailing for an elegant yet powerful solution. With a compact 615mm base, it offers improved manoeuvrability compared to traditional rear-wheel drive chairs. This means that you can freely explore the outdoors with no limitations, while also navigating tight indoor spaces with ease! The R-Trak gives quality, premium features to make every ride smooth and comfortable, such as 10 inches of Powered Safe Seat Elevation – all while reaching a top speed of 7mph (3.5mph when elevated). Alongside this, you gain 50 degrees of tilt, making it one of the best elevating powerchairs you can have.
Our Quantum R-Trak design offers numerous benefits for daily, active use. It has impressive standard features that include 4-pole motors, integrated switch lights and a choice of 12 colours to suit your needs and personalise the powerchair to you. It’s also compatible with the NE+ Controller or Q-Logic 3 expandable drive control system, and gives you a range of seating options, including TRU-Balance 3, Tru-Balance Flex or Contoured Seating. This means that you can have the best possible ride for you that keeps you comfortable and safe to enjoy all sorts of activities.
With a top speed of 7mph and 3.5mph when elevated, the R-Trak is built for speed and endurance through any terrain and any activity. This powerchair can keep up with your lifestyle while never compromising on your comfort, thanks to the high-quality suspension system. You can get around easily on even the most uneven surfaces without feeling a thing. Our Quantum R-Trak Power Wheelchair is truly engineered for everyday use, delivering comfort, traction and accessibility to live life to the fullest.
| Drive Configuration | Rear-wheel Drive |
|---|---|
| Weight Capacity | 3 st 6 lbs |
| Turning Radius | 25.7 in. (653 mm) |
| Length | 34.8" (884 mm) |
| Width | 24.2" (615mm) with 14" wheels 26.2 (665mm) with knobby wheels |
| Ground clearance | 3.97" (101 mm) |
| Max. Obstacle Climbing | 2.36" (60 mm) |
| Max Slope Rate | 7.5° (13.2%) |
| Base Weight | 58 kg |
| Castor wheels | 9" solid |
| Drive wheels | 14" x 3" / 14" x 4" knobby - Solid or Pneumatic |
| Anti-tip Wheels | 4" (102 mm) |
| Battery Size | 2x 70 Ah |
| Speed | 4 mph (6.44 kmh) / 6 mph (9.65 kmh) / 7 mph (11.26 kmh) |
| Motor Packages | 2-Pole / 4-Pole, Rear-wheel |
| Suspension System | SRS (Smooth Ride Suspension) |
| Electronics | Q-Logic NES / Q-Logic 3 |
| Seats | Contour / TB Flex / TB3 |
| Seat Width | 12" - 22" |
| Seat Depth | 12" - 22" |
| Powered Positioning | Tilt / Recline / Lift / Legs |
| Seat Lift | 10" lift @ 3.5 mph |
| Standard Features | USB charger port and front & rear LED fender lights |
| Crash Tested | Yes |
| Colour Range | 14 vibrant colour options |
